● Extended Length 200mm – 900mm
● Stroke Length 100mm – 500mm (customizable)）
● Gas springs are widely used in storage beds that feature a lift-up or gas-assisted lifting mechanism. These springs help raise the bed base, providing access to a storage compartment underneath without the need for excessive force, making it easier to store items.

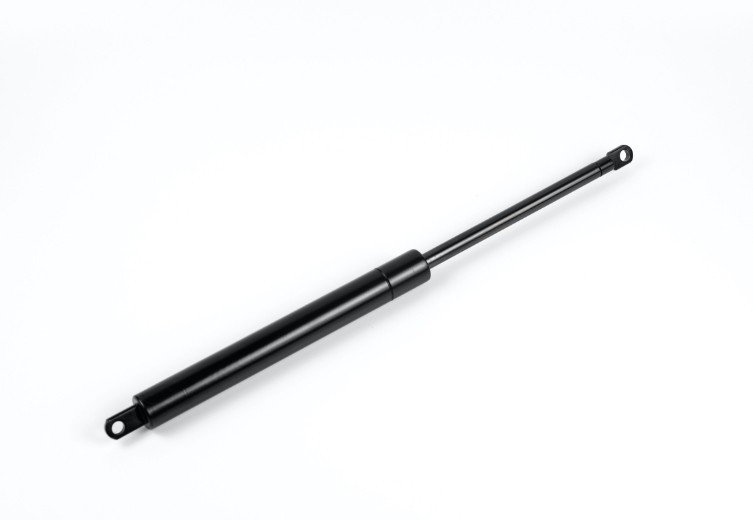

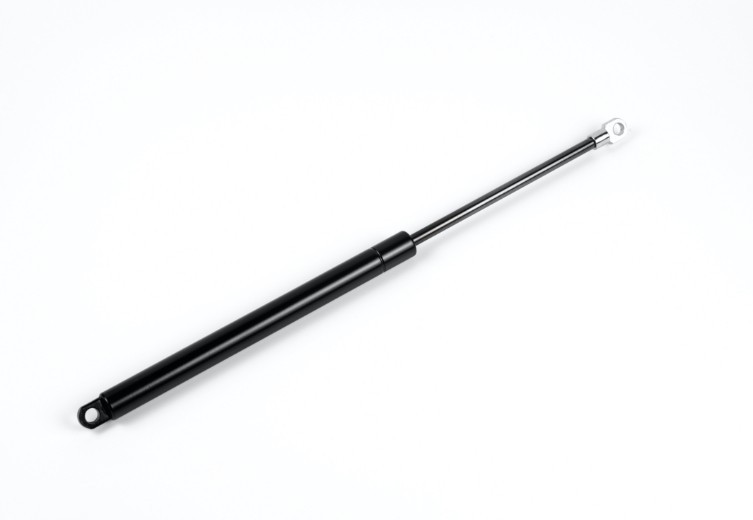

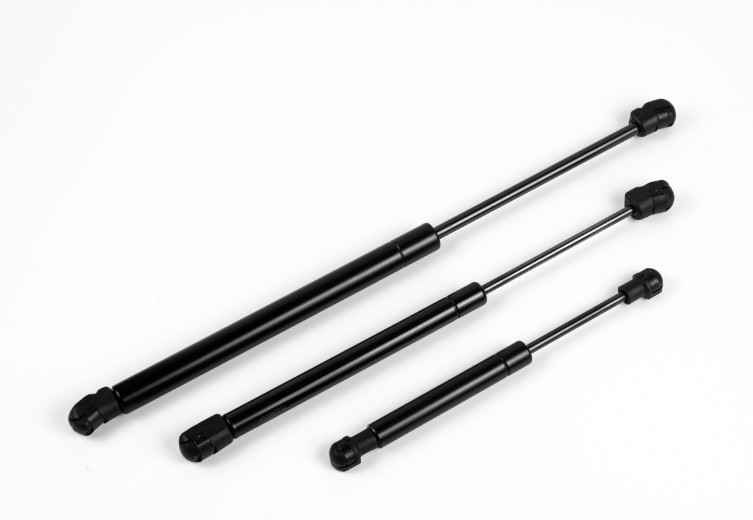

Furniture gas spring struts are mechanical devices designed to assist with the opening, closing, and positioning of furniture components such as beds (e.g., storage beds), cabinets, and wardrobes. These struts use compressed gas to provide lifting force, enabling smooth, controlled motion that makes furniture easier to handle and enhances its functionality. They are widely used in bed storage systems (such as lift-up beds), cabinet doors, and closet mechanisms where weight and size make lifting difficult or cumbersome without assistance.
Force range | hese struts are available in different force ratings (typically ranging from 100N to 1500N) |
Material | Cylinder body: steel (galvanized or sprayed) or stainless steel (corrosion resistant).Piston rod: hard chrome plated steel or stainless steel. |
Sealing material: high-quality fluororubber or polyurethane, effectively preventing dust and dirt from entering the gas spring, ensuring sealing and long-term use. | |
Operating Conditions | Applicable temperature range:Regular models: -20℃~+80℃; special models can withstand -40℃~+120℃. |
Installation
Distinguish between compression type (support force direction is consistent with installation direction) and tension type (reverse support)
Safety Features
Avoid using the machine at full stroke limit, and keep 10%~20% stroke margin to extend life. If frequent high-speed movement is required (such as a robotic arm), a high-response speed model should be selected.
Certification
Industrial applications require compliance with ISO 9001 or industry-specific standards (e.g. TS 16949 for the automotive industry)
● RoHS: Complies with environmental safety requirements, will not release harmful gases during long-term use, and protects the air quality in the car
● SGS: Independent product testing and verification, precise and controllable opening and closing force, easy and smooth operation
Customization options

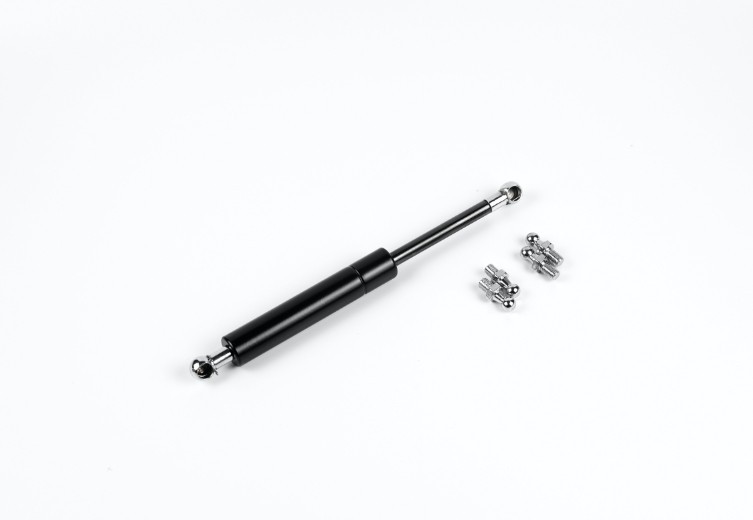

● Customized options: Customized installation interface, providing a variety of standard joint options (ball head/fork head/eye head) Supports customized special joints, perfectly matching the original installation position
● Customized opening force, accurately calculate the required force according to the weight and size of the door panel, ensuring easy opening with one hand while maintaining a stable opening state
● Customized functional characteristics, optional anti-smashing rebound buffer function, customized safety design with limit protection
● Customized surface treatment and customized colors to perfectly match the car body

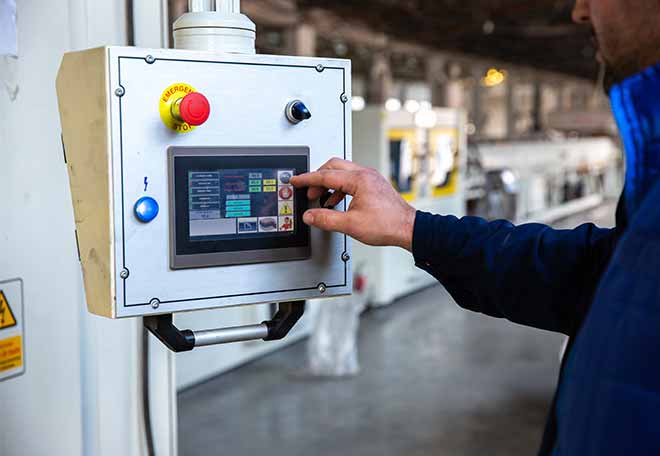

Industrial Machinery & Equipment
Heavy-duty access panels and hatches
Industrial machine covers and maintenance doors
Furniture & Home Applications

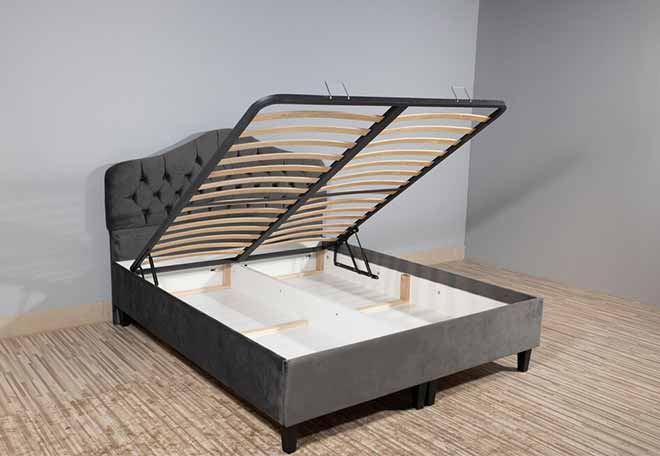

Large storage beds with heavy mattress support
Gas spring struts are discreet, allowing for sleek, modern furniture designs without visible mechanical components.
The smooth operation of gas springs ensures a quiet and pleasant experience when opening or closing furniture.
Gas springs are highly customizable, making them adaptable to various types of furniture, including beds, cabinets, wardrobes, and storage systems.
