● Compact Size:
These gas springs are designed to be small and lightweight, making them ideal for
applications where space is limited. Their compact size does not sacrifice performance,
and they can be used in a variety of environments where larger gas springs may not fit.
● Adjustable Force:
Some models may offer adjustable force settings, allowing users to tailor the force applied
by the spring to match specific requirements. This flexibility is valuable for applications with
varying load weights or movement needs.
● Durable Construction:
Made from high-quality materials such as stainless steel (SS304, SS316) or other robust
alloys, small traction gas springs are built for durability. They resist wear, corrosion, and
damage from environmental factors.

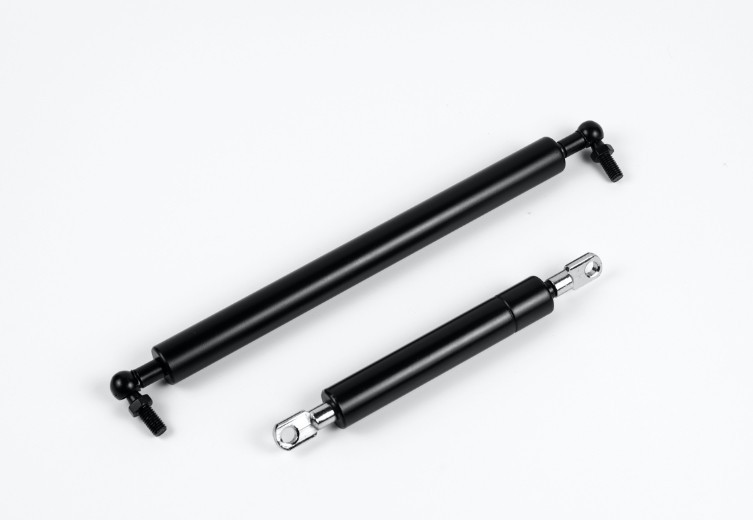

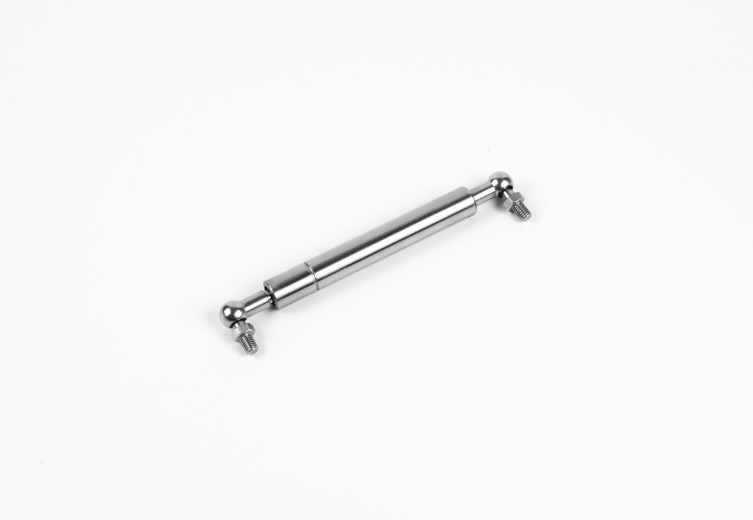

Small traction gas springs with damping force are compact, gas-powered components designed to provide smooth, controlled movement for various lightweight applications. These gas springs feature a combination of lifting or pulling force (traction) and a damping effect to reduce or eliminate sudden movements, providing a more controlled and smooth action. The damping force is typically achieved by a special valve or piston design that regulates the flow of gas within the cylinder, controlling the speed of extension or retraction.
These small traction gas springs are used in a variety of industries and applications where precision, smooth motion, and space-saving design are important. The added damping feature ensures that the force exerted by the spring is controlled, reducing wear and tear on components and improving safety during operation.
Force range | The damping feature is integrated into the gas spring, allowing it to slow down or regulate the movement as it approaches its extended or retracted position. This reduces the shock or impact that could otherwise occur in fast or abrupt movements. |
Material | Cylinder body: steel (galvanized or sprayed) or stainless steel (corrosion resistant).Piston rod: hard chrome plated steel or stainless steel. |
Sealing material: high-quality fluororubber or polyurethane, effectively preventing dust and dirt from entering the gas spring, ensuring sealing and long-term use. | |
Operating Conditions | Applicable temperature range:Regular models: -20℃~+80℃; special models can withstand -40℃~+120℃. |
Installation
Distinguish between compression type (support force direction is consistent with installation direction) and tension type (reverse support)
Safety Features
Avoid using the machine at full stroke limit, and keep 10%~20% stroke margin to extend life. If frequent high-speed movement is required (such as a robotic arm), a high-response speed model should be selected.
Certification
Industrial applications require compliance with ISO 9001 or industry-specific standards (e.g. TS 16949 for the automotive industry)
● RoHS: Complies with environmental safety requirements, will not release harmful gases during long-term use, and protects the air quality in the car
● SGS: Independent product testing and verification, precise and controllable opening and closing force, easy and smooth operation
Customization options
● Customized options: Customized installation interface, providing a variety of standard joint options (ball head/fork head/eye head) Supports customized special joints, perfectly matching the original installation position
● Customized opening force, accurately calculate the required force according to the weight and size of the door panel, ensuring easy opening with one hand while maintaining a stable opening state
● Customized functional characteristics, optional anti-smashing rebound buffer function, customized safety design with limit protection
● Customized surface treatment and customized colors to perfectly match the car body
Industrial Equipment

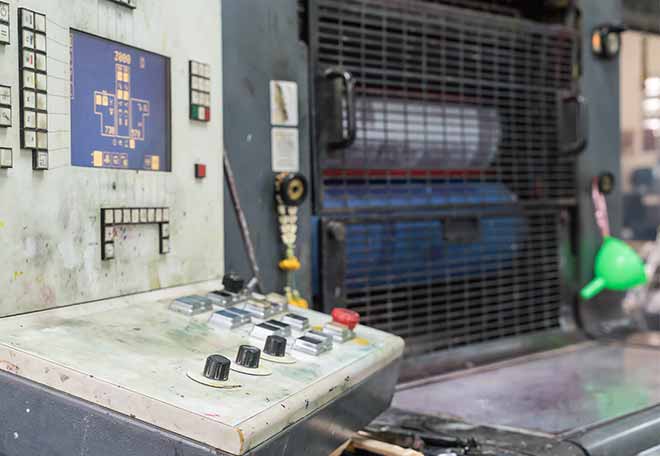

Machinery Adjustments: SS304 gas springs are used in various industrial machines for smooth and controlled movements in adjustable components.
Control Panels: Commonly employed in control panel doors to provide easy access and controlled opening.
Medical Equipment
Adjustable Beds and Medical Chairs: Gas springs are used to adjust the height and position of hospital beds, chairs, and examination tables.
