✅ Extreme Load Support: Delivers a powerful 1000N (100kg / 220lbs) force for heavy lifting tasks.
✅ Safety Damping: Built-in hydraulic buffer prevents heavy lids from slamming shut, protecting operators.
✅ Industrial Durability: Reinforced cylinder and piston rod designed to withstand high internal pressure.
✅ Wide Application: Ideal for wall beds, food truck windows, cellar doors, and heavy machinery guards.
✅ MOQ 200pcs | Custom Sizes & Forces

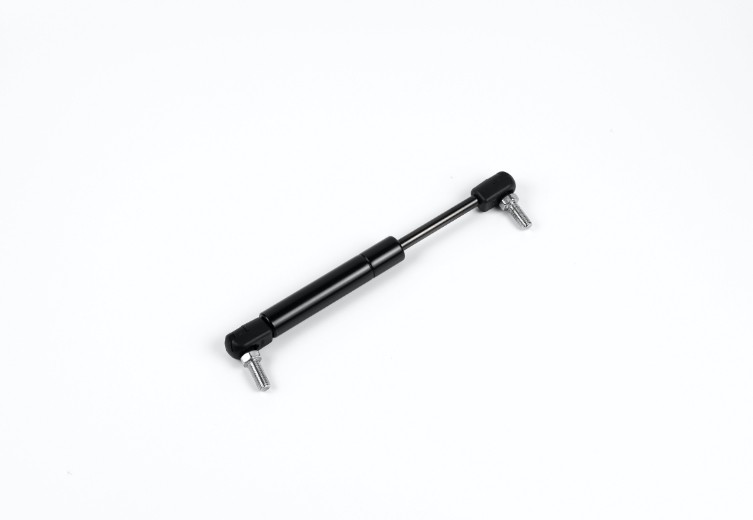

Built for extreme heavy-load performance, our Gas Spring 1000N delivers an unwavering 1000 Newtons of force (approx. 100kg / 220 lbs). Unlike standard furniture struts, this 1000n gas strut is engineered with a reinforced cylinder and high-pressure seals to tackle heavy lifting tasks safely and reliably.
It thrives in high-stress environments: powering Murphy beds (wall beds), supporting heavy food truck serving hatches, and stabilizing industrial machinery covers. With a calibrated ±5% force tolerance and built-in hydraulic damping, it ensures that even the heaviest panels can be lifted with one hand and closed without dangerous slamming.
| Force Rating | 1000N (Newton) ≈ 100kg / 220lbs. Designed for heavy applications. Warning: Do not try to compress by hand. |
| Material Build | Cylinder: Thick-walled Steel with Powder Coating (Black/Silver). Rod: QPQ Nitrided Steel (Black) for high wear resistance under heavy load. |
| Safety Tech | Hydraulic Damping: Essential for 1000N struts to prevent the "catapult effect" when opening and "crashing" when closing. |
| Operating Temp | -20℃ to +80℃. High-viscosity oil maintains damping performance even in hot environments (e.g., food trucks). |
To handle 100kg of pressure, our 1000N struts feature thicker cylinder walls and reinforced piston heads, preventing bending or buckling under load.
Safety is paramount with heavy loads. The internal oil circuit slows the speed at the end of the stroke, ensuring the heavy lid comes to a soft stop.
ISO 9001 & SGS Verified. Tested for 30,000+ duty cycles, ensuring years of reliable lifting for your bed or machinery.
• Fittings: Heavy-duty welded eyelets or M8/M10 ball studs.
• Stroke: Long stroke options (up to 500mm+) available for large wall beds and hatches.
Vertical Lift: The most common use for 1000N struts. Counterbalances the weight of a Double or Queen bed frame, making it easy to stow away.
Service Hatches: Lifts heavy serving windows on food trucks, horse float tailgates, and RV slide-out covers.

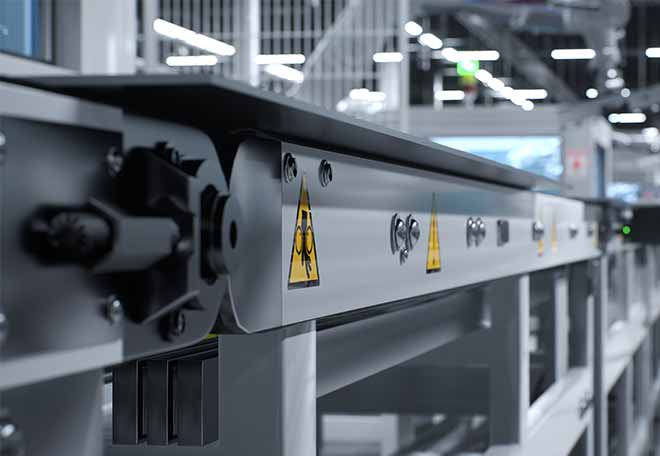

Machinery Guards: Provides lift assistance for heavy steel protective covers on generators, CNC machines, and agricultural equipment.
True 1000N capacity. Supports 100kg+ loads when used in pairs.
Prevents heavy lids from crashing down or flying open dangerously fast.
Thick steel tube and high-performance seals for long life under high pressure.
Sealed nitrogen system requires no lubrication or refilling.
Keeps heavy panels firmly open, preventing accidental closure.
We can adjust the length and connectors to suit your specific machinery.
Colewell takes pride in supplying heavy-duty 1000N gas springs to automotive, medical, and industrial clients worldwide.
Our rigorous quality control and advanced testing ensure that every strut we export meets the highest standards for load-bearing and safety, giving you peace of mind for your heavy lifting needs.
A: 1000N is approximately equal to 100kg (220lbs) of force. This is a very strong strut.
A: No, absolutely not. 100kg is too much force to compress manually. It must be installed on the application to operate safely.
A: No! 1000N is far too strong for a toy box and would be dangerous. For toy boxes, look for 50N-100N struts.
A: Yes, the powder-coated cylinder and nitrided rod provide excellent corrosion resistance. For marine environments, ask about our stainless steel options.
