● Extended Length 200mm – 900mm
● Stroke Length 100mm – 500mm (customizable)
● Consider how far the cupboard door will open. Gas springs with different stroke lengths provide different opening ranges. For wide-opening cupboard doors, a longer stroke may be required.

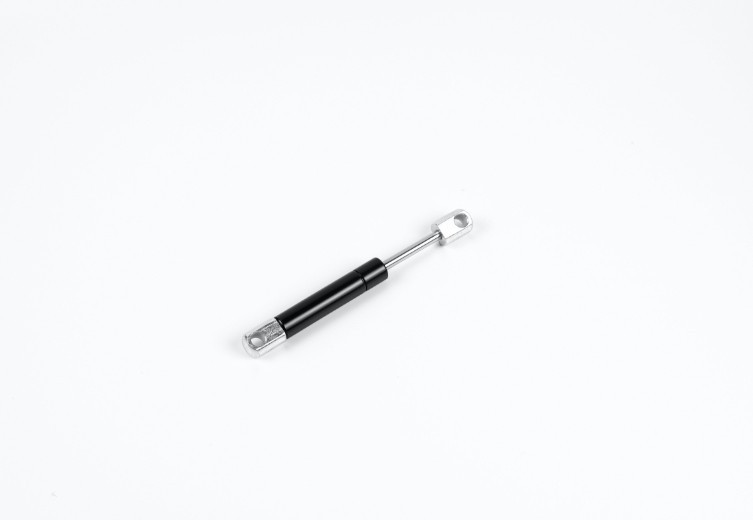

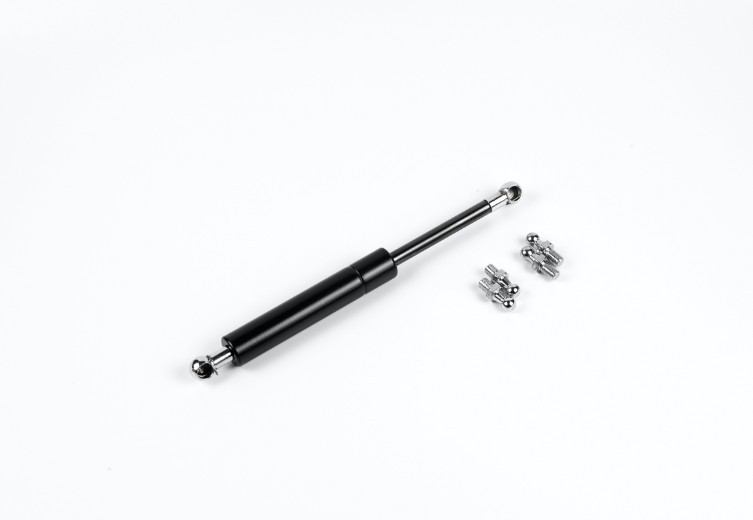

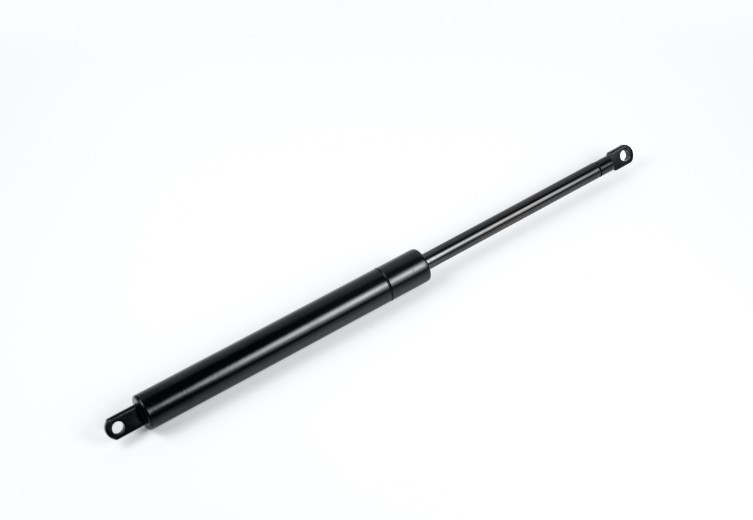

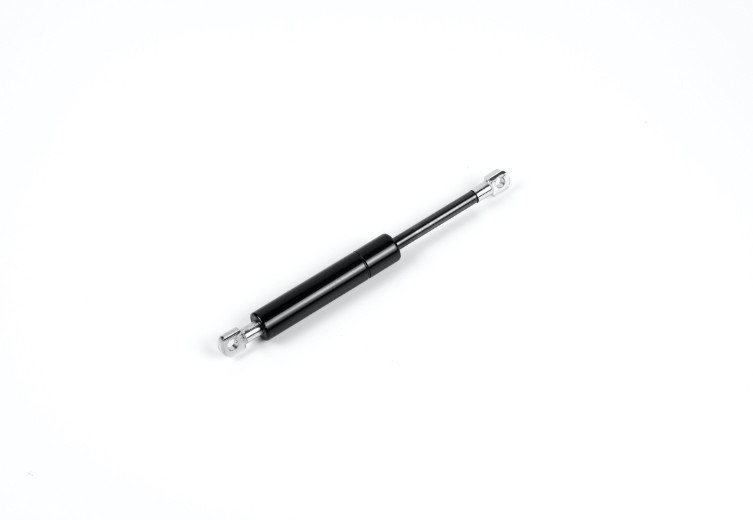

Kitchen cupboard door lift support gas spring struts are designed to assist in the smooth opening and controlled closing of kitchen cabinet doors. These gas springs use compressed gas to provide lifting force, allowing the cabinet door to open easily and stay in place when fully opened. They provide a silent, smooth, and safe operation, enhancing both the functionality and aesthetic of your kitchen cabinetry. These gas struts help make accessing items in overhead kitchen cabinets more convenient, with a soft-close feature that prevents the door from slamming shut.
Force range | Available in various force ratings (from 100N to 600N), these struts can support a wide range of cupboard door weights, from lightweight doors to heavy-duty kitchen cabinets. |
Material | Cylinder body: steel (galvanized or sprayed) or stainless steel (corrosion resistant).Piston rod: hard chrome plated steel or stainless steel. |
Sealing material: high-quality fluororubber or polyurethane, effectively preventing dust and dirt from entering the gas spring, ensuring sealing and long-term use. | |
Operating Conditions | Applicable temperature range:Regular models: -20℃~+80℃; special models can withstand -40℃~+120℃. |
Installation
Distinguish between compression type (support force direction is consistent with installation direction) and tension type (reverse support)
Safety Features
Avoid using the machine at full stroke limit, and keep 10%~20% stroke margin to extend life. If frequent high-speed movement is required (such as a robotic arm), a high-response speed model should be selected.
Certification
Industrial applications require compliance with ISO 9001 or industry-specific standards (e.g. TS 16949 for the automotive industry)
● RoHS: Complies with environmental safety requirements, will not release harmful gases during long-term use, and protects the air quality in the car
● SGS: Independent product testing and verification, precise and controllable opening and closing force, easy and smooth operation
Customization options
● Customized options: Customized installation interface, providing a variety of standard joint options (ball head/fork head/eye head) Supports customized special joints, perfectly matching the original installation position
● Customized opening force, accurately calculate the required force according to the weight and size of the door panel, ensuring easy opening with one hand while maintaining a stable opening state
● Customized functional characteristics, optional anti-smashing rebound buffer function, customized safety design with limit protection
● Customized surface treatment and customized colors to perfectly match the car body
Medical & Rehabilitation Equipment
Heavy-duty patient stretchers.
Aerospace & Marine
Ship hatches and deck access panels.
These struts are made from high-quality materials, offering long-lasting performance even with frequent use in a kitchen environment.
They make accessing your kitchen items more convenient by ensuring the cupboard door stays open when needed and closes gently after use.
