MOQ: 200 pcs
Applications: Adjustable beds, Window shutters, Aerospace storage, Medical equipment
Locking Force: 100N-5000N (zero deflection under load)
Pressure Range: 20-200 bar (adjustable)
Material: Hard chrome-plated rod + Stainless steel/Galvanized cylinder
Temperature Range: -20°C to +80°C (standard) | -40°C to +120°C (special)
Certifications: ISO9001, CE, RoHS
Custom Options: Force, stroke, precision valve, mounting joints

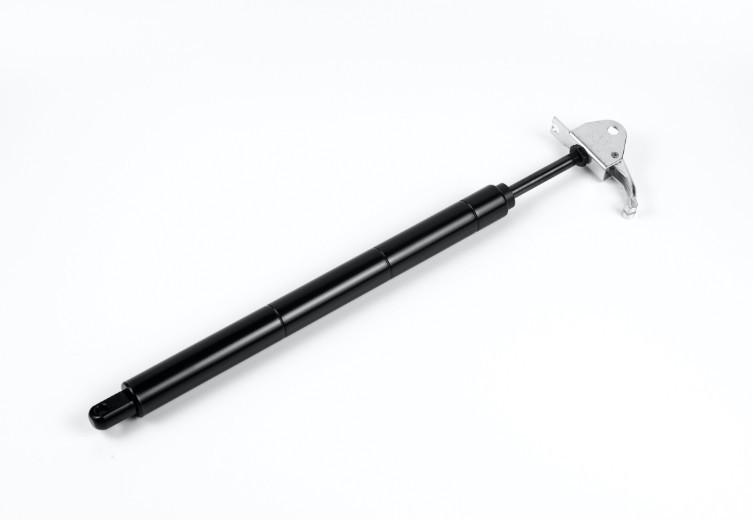

Colewell Rigid locking gas strut locks at zero deflection under 100N-5000N loads with adjustable 20-200 bar pressure for post-installation customization. Unlike standard lockable struts allowing 2-5mm movement, the precision valve ensures firm hold for aerospace storage, adjustable beds, and multi-angle window shutters requiring 60,000+ lock/release cycles.
Force range | 100N-5000N locking force with zero deflection under load (vs. standard lockable struts with 2-5mm deflection) Pressure: 20-200 bar adjustable for post-installation load matching |
Material | Cylinder & Rod: High-strength stainless steel or galvanized steel with precision valve integration |
Sealing: Fluororubber seals maintain rigid lock integrity during 60,000+ cycles | |
Operating Conditions | Temperature: -20℃ to +80℃ (standard) | -40℃ to +120℃ (special) Locking Mechanism: Precision valve with instant rigid hold (no bounce or give) Deflection: <0.1mm under maximum rated load Application Focus: Aerospace panels, medical equipment, multi-angle furniture positioning |
Installation
Compression type for rigid upward support (aerospace panels, adjustable beds). Tension type for pull-down rigid locking (window shutters). Rigid locking gas strut mounts via reinforced ball/fork/eye joints.
Safety Features
10%-20% stroke margin extends rigid locking gas strut lifespan to 60,000+ cycles. Precision valve prevents accidental release under vibration or shock loads (critical for aerospace/medical applications).
Certification
● ISO 9001: Manufacturing standards for rigid locking gas strut precision components
● RoHS: Non-toxic materials for enclosed environments
● CE: European safety compliance
● AS9100: Optional aerospace quality certification available
Customization Options
● Locking Force: Rigid locking gas strut customized 100N-5000N based on load weight and holding requirements
● Pressure Adjustment: 20-200 bar tuning for post-installation load matching
● Valve Type: Standard instant-lock or gradual-lock for smooth positioning
● Mounting Joints: High-strength ball/fork/eye heads with anti-rotation design
● Stroke Length: Customized for specific angle requirements (adjustable beds, skylights)
● Load Testing: Pre-delivery deflection testing under rated load (<0.1mm verification)
Home and Lifestyle

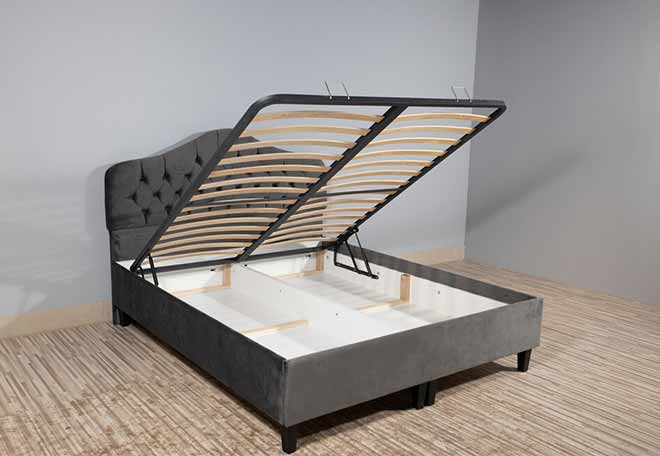

Adjustable beds – Locking at different angles for comfort.
Window shutters and skylights – Controlled opening and locking.
Aerospace and Defense
Storage compartments – Controlled and secure opening.
Access panels – Precision positioning and locking.
Precision valve ensures firm hold under load.
Long lifespan with minimal maintenance.
