Cylinder diameter: 15mm - 40mm (customizable to meet non-standard installation requirements) 15mm ultra-thin cylinder series, lightweight design. 18mm standard cylinder adapts to most designs 28mm large diameter cylinder, heavy-duty gas spring Special inner wall treatment reduces fri.ction and runs more smoothly.
Piston rod diameter: 6mm - 12mm (customizable)
6mm slim piston rod, suitable for small gas springs
8mm standard piston rod, load range 100-500N
10mm reinforced piston rod, suitable for heavy loads above 1000N.
Stroke length:
100-600mm standard stroke optional, perfect for furniture products
50-80mm short stroke, 800-1200mm ultra-long stroke customizable.
Door gas spring is an automatic opening and closing auxiliary device widely used in various types of doors (such as interior doors, exterior doors, cabinet doors, etc.). It provides a stable opening and closing support force through the principle of gas compression and expansion, ensuring that the door body can be opened and closed smoothly. Door gas springs can not only make the opening and closing of doors more labor-saving, but also effectively reduce the impact caused by the rapid closing of the door body, extend the service life of the door body and hinges, and improve the comfort and safety of the door.
Force adjust | Adjustable force range: Through the compression and release of internal gas, it provides precise support force, and the elasticity can be adjusted according to actual needs, suitable for a variety of furniture applications. Adjustment method: Tool-free quick adjustment, the owner can operate it by himself, eliminating the trouble of returning to the factory for debugging; clear scale display, record the best adjustment position • Smooth lifting: Furniture gas springs can smoothly adjust the seat height, table height or other furniture parts to avoid sudden falls or vibrations, ensuring safety and comfort in use. |
Appearance | Convenient adjustment: The air pressure adjustment function of the Gas struts for doors can achieve smooth lifting or adjustment, making it more convenient to use. |
Space saving: Compared with traditional mechanical adjustment devices, door gas springs are usually more compact in design and suitable for furniture products with limited space. | |
| Extended service life: Due to the high durability and stability of door gas springs, their service life is long, greatly reducing the frequency of maintenance and replacement. | |
Operating Conditions | Temperature range: wide temperature adaptability Special internal gas ratio, no jamming when starting at -40℃ Continuous and stable operation at 70℃, to cope with high temperature conditions Stable performance under sudden temperature changes, to adapt to temperature requirements throughout the year. |
Anti-seismic performance Door gas springs have excellent shock absorption performance, which can effectively absorb external impact and vibration, and enhance the comfort of furniture when used, especially in the adjustment of sofas and mattresses. | |
High load capacity: Depending on the design requirements, kitchen door gas struts can withstand different load weights and are suitable for a variety of applications from light furniture to heavy furniture. | |
Durability: Furniture kitchen door gas struts are made of durable materials (such as stainless steel, aluminum alloy, etc.), can be used stably for a long time, and have strong adaptability to environmental changes (such as temperature and humidity). |
Interior Design
● Cylinder material: high-quality 6063 aluminum alloy extrusion molding, lightweight design to reduce weight
Special anodizing treatment to cope with humid environments
Double-wall thickness design, stronger pressure bearing capacity and longer service life.
Surface Coating
● Surface treatment: hard chrome plating, excellent wear resistance, capable of frequent lifting and lowering.
● Available in matte, glossy or custom finishes.
Installation
● End fittings: Standard M8/M6 quick-release connectors
Optional extended connectors to accommodate thickened panels on toy box lids
Anti-loosening thread design
● Installation method: quick connection or bolt connection, easy to install
Safety
●Anti-squeeze safety design
Automatic deceleration mechanism for rapid door drop
Children's finger protection device
Automatic overload locking function.
●Extreme working condition protection
The cabinet door remains locked when the RV tilts 15°
The storage box anti-fall device when parking on a ramp
The storage space remains sealed during emergency avoidance.
●Intelligent anti-fall protection
Automatic locking function during bumpy driving to prevent the cabinet door from opening accidentally
Double mechanical safety lock to ensure high-speed driving safety
Buffer delay system during emergency braking to prevent items from bursting out.
Certification
Industrial applications require compliance with ISO 9001 or industry-specific standards (e.g. TS 16949 for the automotive industry)
● RoHS: Complies with environmental safety requirements, will not release harmful gases during long-term use, and protects the air quality in the car
● SGS: Independent product testing and verification, precise and controllable opening and closing force, easy and smooth operation
Customization Options
● Customized installation interface, providing a variety of standard joint options (ball head/fork head/eye head)
Supports customized special joints, perfectly matching the original installation position.
● Dimensional pressure customization, accurately calculating the required force based on weight and size to ensure easy opening while maintaining a stable opening state.
● Customized functional characteristics, optional anti-smashing rebound buffer function, customized safety design with limit protection.
● Customized surface treatment and customized colors to perfectly match the car body.
Storage cabinets/kitchen cabinets
The cabinet door opens upwards without taking up aisle space.
It opens gently to prevent items from shaking and falling.
It can remain open for a long time, making it easy to take items in and out

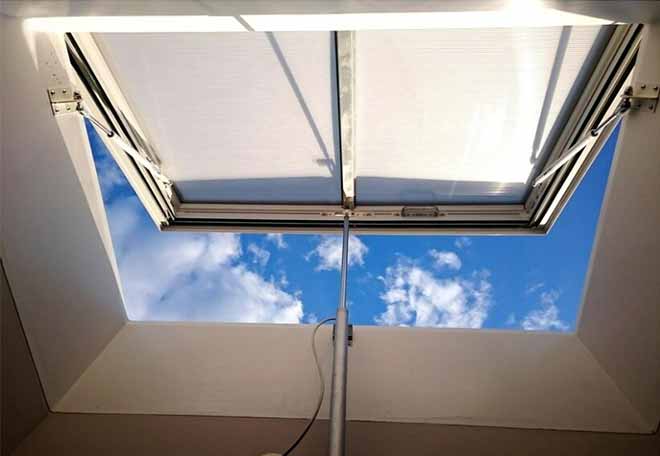

Door and window supports
One-touch unfolding and folding saves space
Multiple stop positions to meet different usage scenarios
Easy to operate, easy for both the elderly and children to use
Innovative Design: Our dedicated R&D team specializes in developing innovative gas springs for toy box lids that provide smooth operation, precise force control, and enhanced durability.Continuous Improvement: We incorporate customer feedback into our product development process to provide solutions that meet changing market demands.
Tailor-made solutions: We offer fully customizable options tailored to vehicle size standards in different countries.Flexible OEM/ODM service: Our team works closely with customers to design and manufacture products that meet the usage habits of the target market.
