Stroke Length: Optional (customized by application requirements)
Material: Precision steel tube + chrome-plated piston rod
Mounting Options: Ball socket / eyelet / customized ends
Customization: Force, length, fittings, bulk OEM available
MOQ: 200 Pcs
Designed for applications requiring high-force lifting, the 1200N Gas Strut (approx. 120kg / 265lbs) offers reliable motion control for heavy industrial and commercial equipment. With optimized internal nitrogen pressure and a reinforced cylinder body, these heavy-duty struts ensure safety and stability when lifting substantial weights.
Colewell’s 1200N gas struts are engineered to support heavy generator covers, large vehicle hatches, and manufacturing machinery panels. They balance immense strength with smooth operation, preventing heavy lids from slamming shut and ensuring operator safety.
Force Capacity | 1200N (Newton) ≈ 120kg. A high-pressure strut designed for heavy-duty lifting. Force can be customized (e.g., 1000N-1500N). |
Material Build | Cylinder: Thick-walled Steel (2mm+) for high pressure safety. |
Sealing Tech | Double-lip industrial seals withstand high internal pressure, ensuring the 1200N gas strut does not leak over time. |
Operating Temp | Standard: -20℃ ~ +80℃ |
Requires robust mounting points (e.g., welded brackets or M10 ball studs) to handle the 120kg force. Always install rod-down.
Includes hydraulic end-damping to slow down the motion at the end of the stroke, preventing 120kg lids from crashing open or shut.
ISO 9001 certified for consistency. Pressure tested to ensure 50,000+ safe cycles under full load.
• Joints: Heavy-duty Metal Eyes or Clevis Forks recommended.
• Force: Precise 1200N calibration.
• Safety: Optional locking tube available.

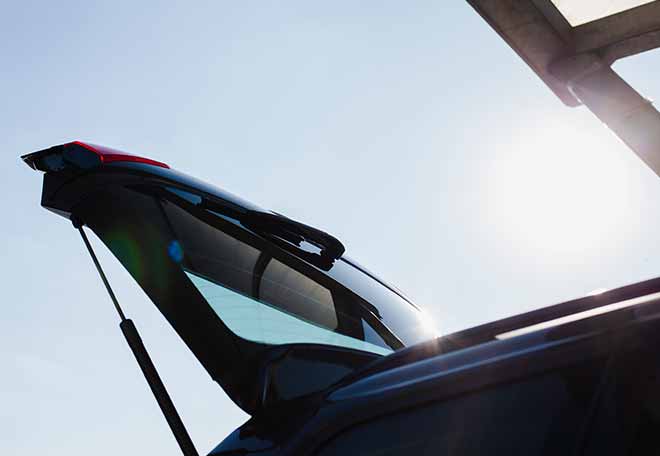

Heavy Hatches: Ideal for modified vehicles with heavy spoilers, sound systems, or armored tailgates requiring extra lift force (1200N).
Equipment Covers: Supports heavy acoustic covers, generator lids, and manufacturing machine guards, ensuring safe maintenance access.
The 1200N gas struts provide immense lifting power, holding 120kg loads securely without sagging.
Hydraulic damping prevents heavy lids from slamming, protecting equipment and users.
Salt-spray tested coatings ensure the strut performs well in outdoor or harsh industrial environments.
Reinforced cylinder walls prevent bursting under high pressure. Locking options available.
Sealed nitrogen system requires no refilling. Designed for long-term reliability.
We tailor the 1200N gas strut length and connectors to fit your heavy-duty application perfectly.
Colewell Machinery leverages automated production to offer high-performance 1200N gas struts at competitive prices. By sourcing premium steel and optimizing manufacturing, we provide affordable, heavy-duty solutions for industrial and automotive clients without compromising on safety or quality.
A: 1200N gas struts are designed for lids weighing approx. 120kg (265lbs). Always check your leverage points.
A: Yes, we can add a release valve allowing you to release gas to lower the force if needed.
A: Yes, our struts feature QPQ or painted finishes that pass salt-spray tests for outdoor durability.
